Dual Thermal Imager Camera 384x288 TherCam384

Dual Thermal Imager Camera 384x288 TherCam384

Regular price €1.550,00 EUR
Regular price €3.495,00 EUR Sale price €1.550,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

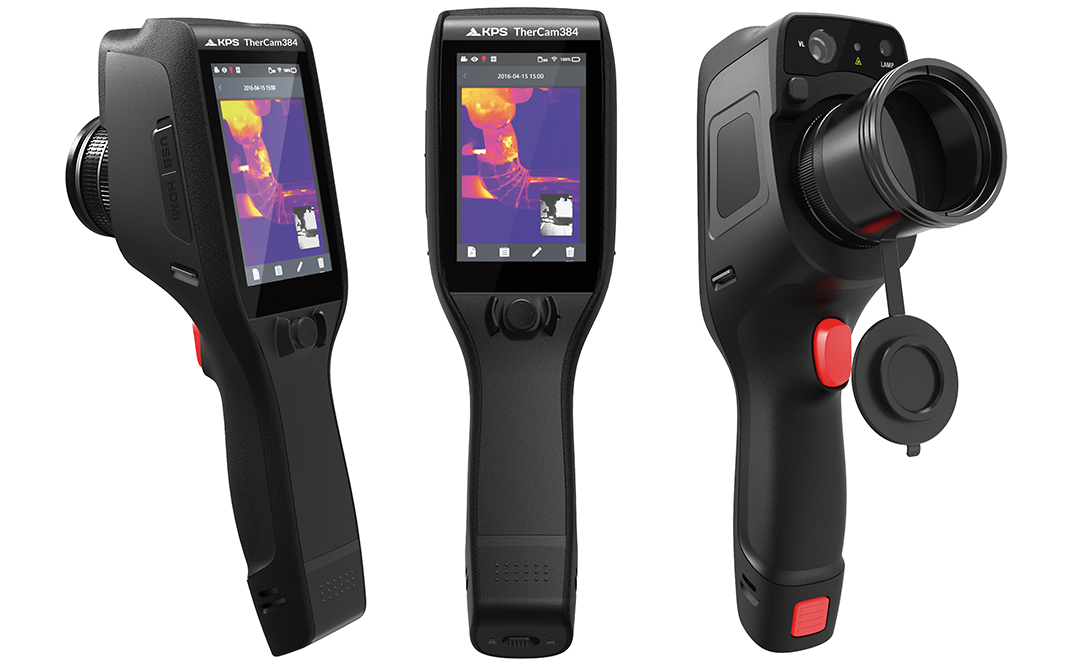

The TherCam384 camera offers innovative and high-quality features. Its robust and ergonomic design stands out. Its simple operation interface and smart button navigation will make the first-time user feel like an expert. Equipped with a set of optional lenses for different field of view requirements in different occasions. With its built-in illuminator, you can easily take visible photos and compare them with IR photos, helping you find problems more easily.

  • High brightness 4" touch screen that provides a clear and detailed image, even in low light conditions.
  • Built-in illuminator allows you to take visible photos in low light environments.
  • The THERCAM384 can capture different types of images, including infrared, visible, MIF (Enhanced Infrared Image) and PIP (Split Screen Infrared Image) images.
  • It has a removable SD card that allows you to store up to 32 GB of images and videos.
  • Allows immediate sharing of IR images over Wi-Fi.
  • It can be connected to a mobile phone to take IR photos and use multi-screen mode.
  • Robust and compact design that makes it resistant to shocks and falls.
  • Standard Micro USB interface allowing data transmission and charging.

And, what can we use the THERCAM384 for?

  • Detection of electrical problems, such as short circuits, overloads and insulation failures.
  • It can be used to detect medical diagnosis.
  • To detect mechanical problems, such as parts wear, bearing failures and lubrication problems.
  • To detect telecom equipment problems such as cable failures, component failures and performance problems.
  • Building diagnosis, such as air leaks, water leaks and structural damage.
  • Detection of chemical industry equipment problems, such as heat leaks, combustion problems and equipment failures.

Characteristics:

Detector type

VOx/ 8~14μm

IR resolution

384x288

Thermal Sensitivity/NETD

45mK

Field of view (FOV)

28.4°×21.5°

Spatial resolution (IFOV)

1.29mrad

Frames per second

25Hz

digital zoom

1.1~4

Approach

Manual

Visible camera resolution

5MPixels

Flashlight

Yeah

Screen

LED touch screen

Screen size

4"

Image model

IR/Visible/PiP/MIF

color palettes

8

Temperature range

-20ºC-150ºC, 100ºC-650ºC, 650ºC-1500ºC, Autorange

Accuracy

2%

Measuring point

5

Measurement area

5

Alarm

Max & Min

Automatic tracking of hot and cold spots

1. Max/Min temperature point full screen

2. Max/Min temperature point on analyzed object

Voice recording

Yeah

Video recording

Yeah

Storage media

On camera and TF card, JPG with temperature information. TF Standard (16Gb)

USB

Yeah

Laser

Yeah

Tripod interface

Yeah

WIFI

Yeah

Mobile APP

Yeah

PC IR Analysis Software

Yeah

Battery Type

Rechargeable Li-ion

Battery run time

>4 hours

Loading time

4 hours

Operating temperature

-10ºC~50ºC

Degree of protection

IP54

Fall test

Shock and vibration test

  • 3 years warranty
  • Lifetime technical support
