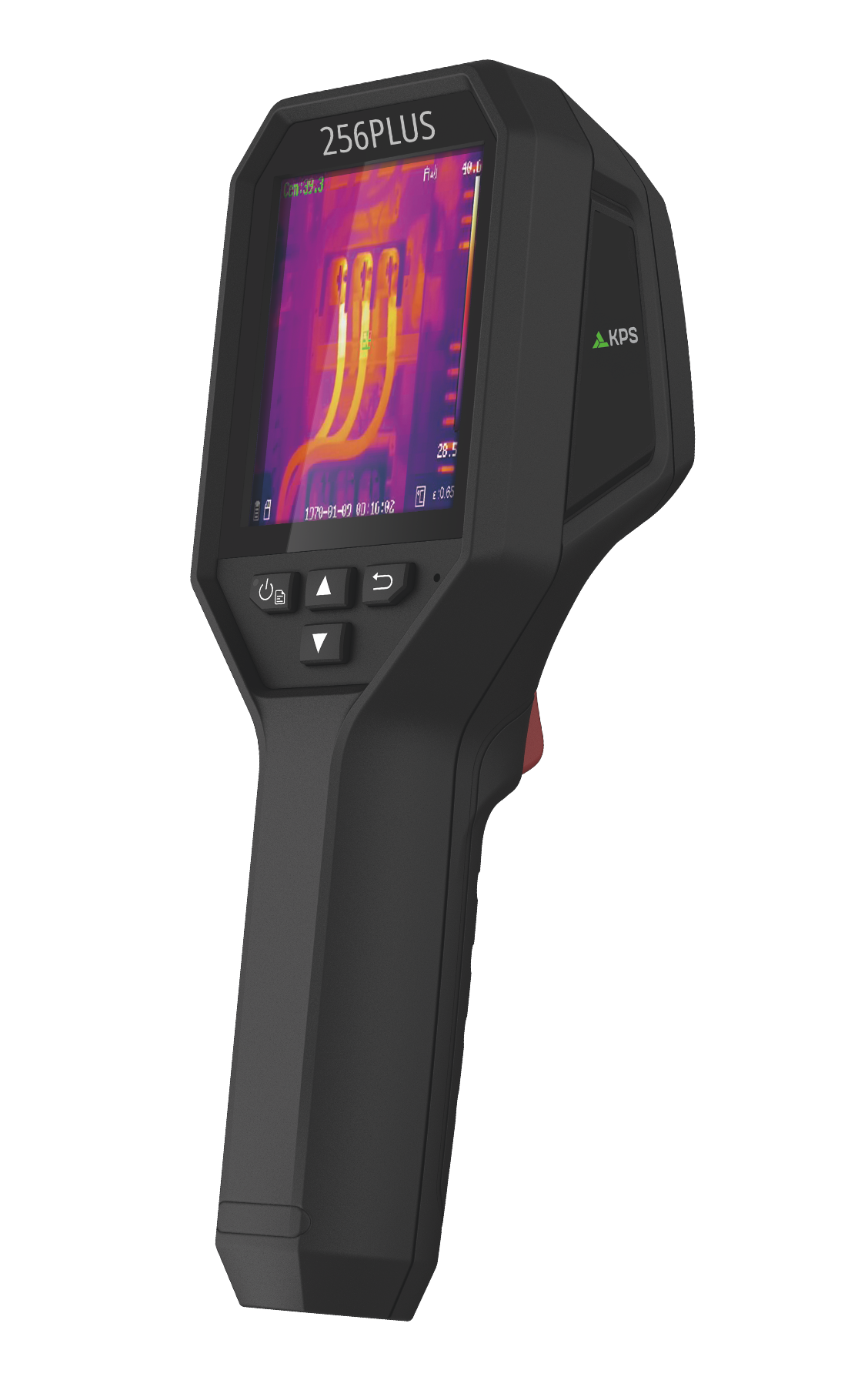

Thercam256Plus

The TherCam256PLUS thermal imaging camera is designed for temperature measurement and detection of invisible flaws. It is equipped with a 256x192 pixel thermal detector and a 2 MP optical detector. Thermal imaging covers a range of -20°C to 550°C ( -4°F to 1022°F ), covering most situations.

It helps personnel quickly locate faults by accurately measuring the temperature of high-temperature targets within the environment. At the same time, it facilitates decision-making and ensures safety.

The device is primarily intended for use in various sectors, such as construction, HVAC (air conditioning), and the automotive industry, among others.

Main features:

● Thermal resolution: 256 × 192 (49,152 pixels)
● NETD : < 40 mK (@ 25 °C, F#=1.0)
● Temperature measurement range: -20°C to 550°C ( -4°F to 1022°F )
● Accuracy: Max (±2°C / 3.6°F, ±2%) , for ambient temperatures from 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
● Measurement modes: Center point, hot spot, cold spot, user-defined point
● Frame rate: 25 Hz
● 3.2” LCD screen
● Up to 6 hours of continuous operation
